Mechanical Seal Teflon Bellow

Type: CS 20

Features:

Single seal
Balanced
Suitable for extremely corrosive liquids at low pressures Seal with multiple springs
Outside mounted

Application:

It is used for extremely corrosive chemicals, including concentrated acids and salts, strong oxcidsing and reducing agents and chemically active organic compounds.

Glass filled PTFE face composite moulded with flexible PTFE bellow

Operating Condition:

Temperature : -20°C to +120°C
Pressure : up to 6 bar g
Speed : 20 m/s

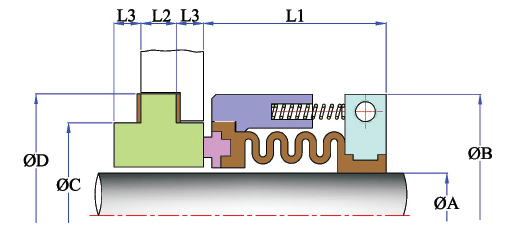

Seal size (Inches)	ØA	ØB	L1	ØC	ØD	L2	L3
1	25.4	61	33	54	42.86	8	4.8
1.125	28.57	67	36	65	50.8	11	8
1.25	31.75	70	37	68	53.98	11	8
1.375	34.92	73	38	71	57.15	11	8
1.5	38.1	76	38	78	63.5	11	8
1.625	41.27	80	40	81	66.68	11	8
1.75	44.45	83	40	84	69.85	11	8
1.875	47.62	86	43	87	73.03	11	8
2	50.8	89	43	97	79.38	14.3	9.5
2.123	53.97	103	53	100	82.55	14.3	9.5
2.25	57.15	107	53	103	85.73	14.3	9.5
2.375	60.32	110	53	106	88.9	14.3	9.5
2.5	63.5	113	53	110	92.08	14.3	9.5
2.625	66.67	116	53	113	95.25	14.3	9.5
2.75	69.85	118	53	116	98.43	14.3	9.5
2.875	73.02	122	53	117	100.01	14.3	9.5
3	76.2	126	53	121	103.19	14.3	9.5
3.25	82.55	150	73	132	114.3	14.3	9.5
3.5	88.9	156	73	138	120.65	14.3	9.5
3.75	95.25	163	73	144	127	14.3	9.5
4	101.6	169	73	151	133.35	14.3	9.5

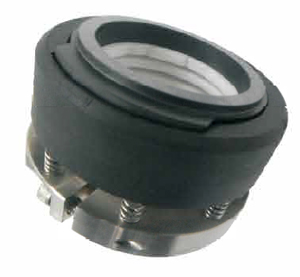

Type: CS 20 R

Features:

Single seal
Balanced
Suitable for extremely corrosive liquids at low pressures Seal with multiple springs
Outside mounted
Replaceable Face

Application:

It is used for extremely corrosive chemicals, including concentrated acids and salts, strong oxcidsing and reducing agents and chemically active organic compounds.

Replaceable sealing faces drive by integral lugs on bellows.

Operating Condition:

Temperature : -20°C to +120°C
Pressure : up to 6 bar g
Speed : 20 m/s

Seal size (Inches)	ØA	ØB	L1	ØC	ØD	L2	L3
1	25.4	61	33	54	42.86	8	4.8
1.125	28.57	67	36	65	50.8	11	8
1.25	31.75	70	37	68	53.98	11	8
1.375	34.92	73	38	71	57.15	11	8
1.5	38.1	76	38	78	63.5	11	8
1.625	41.27	80	40	81	66.68	11	8
1.75	44.45	83	40	84	69.85	11	8
1.875	47.62	86	43	87	73.03	11	8
2	50.8	89	43	97	79.38	14.3	9.5
2.123	53.97	103	53	100	82.55	14.3	9.5
2.25	57.15	107	53	103	85.73	14.3	9.5
2.375	60.32	110	53	106	88.9	14.3	9.5
2.5	63.5	113	53	110	92.08	14.3	9.5
2.625	66.67	116	53	113	95.25	14.3	9.5
2.75	69.85	118	53	116	98.43	14.3	9.5
2.875	73.02	122	53	117	100.01	14.3	9.5
3	76.2	126	53	121	103.19	14.3	9.5
3.25	82.55	150	73	132	114.3	14.3	9.5
3.5	88.9	156	73	138	120.65	14.3	9.5
3.75	95.25	163	73	144	127	14.3	9.5
4	101.6	169	73	151	133.35	14.3	9.5
